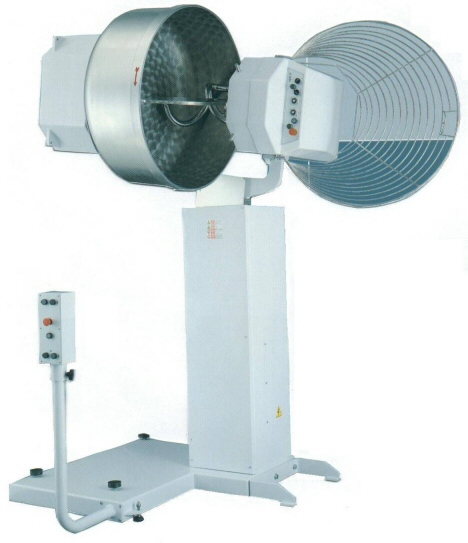

Spiral Mixer with Tilt and Lift Capacity

•Spiral Mixer with Tilt & Lift Capacity


-- Automatic Coupling and Lifting
-- Two Speed Automatic
-- Stainless Steel Bowl, Hook, Safety Grip
-- Heavy Duty Hydraulic Lift System
-- Hydraulic Bowl Locking Device





TILT & LIFT SPIRAL MIXER SPECIFICATIONS

tilt and lift spiral mixer specifications

For Unloading on Table Top:
Model
Dough Capacity
A
B
C
Height
Weight
HP
MLT100
220 lbs
59"
50"
58"
87"
1742 lbs
8.0
MLT130
285 lbs
63"
51"
59"
91"
1940 lbs
9.5
MLT160
350 lbs
65"
55"
65"
95"
2315 lbs
10.25
MLT200
425 lbs
65"
55"
65"
95"
2359 lbs
13.75
MLT250
550 lbs
67"
59"
67"
106"
2447 lbs
17.50



For Unloading into Divider:

Model
Dough Capacity
A
B
C
Height
Weight
HP
MLD100
220 lbs
59"
50"
69"
112"
2006 lbs
8.0
MLD130
285 lbs
63"
51"
69"
114"
2315 lbs
9.5
MLD160
350 lbs
65"
55"
69"
118"
2756 lbs
10.25
MLD200
425 lbs
65"
55"
69"
118"
2800 lbs
13.75
MLD250
550 lbs
67"
59"
69"
130"
2910 lbs
17.50



All mixers are 220 volts, 3 phase, 60 Htz.
